　　高溫旋轉閥/水冷式旋轉閥/高溫卸料閥，其外殼、蓋板、轉子以及軸承部件都采用循環水冷卻，密封材料和軸承部分能承受在高溫下正常運轉，適用于鋼廠、電廠、礦山、水泥、鍋爐、鋰電、化工、污泥逢燒、桔桿逢燒、窯底出料、鍋爐排料、真空殺菌等行業。也可根據用戶要求進行結構設計制造，確保安全正常工作。葉輪主軸采用全 面通水降溫，避免高溫形變，影響同心度?！倦娫?huà)/微信咨詢：陳經理18068546632】　　需求1：變頻給料閥/高溫旋轉閥：焙燒車間，用途：控制硫磺倉內硫磺的供給量。物料堆密度 t/m3：1.5.輸送量 t/h：5.尺寸：DN200.閥門高度/mm：H≈420.閥體(上下殼體)材質：304.葉輪：304.物料溫度：200~400℃，等級：10kv，380V/220V，50Hz?！　⌒枨?：粉體旋轉閥，4英寸卡接口，DN100 316L材質 手動 物料是有制藥用粉末，高溫度200℃蒸汽滅菌?！　⌒枨?：物料：脫硫灰粉料，耐高溫:400-500度，目前用的不銹鋼材質?！倦娫?huà)/微信咨詢：陳經理18068546632】        《掃二維碼-添加 陳經理 微信-咨詢鏈驅動高溫旋轉閥》　　High temperature rotary valve/water-cooled rotary valve/high temperature discharge valve, its shell, cover plate, rotor, and bearing components are all cooled by circulating water. The sealing material and bearing parts can withstand normal operation at high temperatures, and are suitable for industries such as steel mills, power plants, mines, cement, boilers, lithium batteries, chemical engineering, sludge co firing, orange rod co firing, kiln bottom discharge, boiler discharge, vacuum sterilization, etc. Structural design and manufacturing can also be carried out according to user requirements to ensure safe and normal operation. The impeller spindle adopts comprehensive water cooling to avoid high-temperature deformation and affect concentricity.　　Variable frequency feeding valve/high-temperature rotary valve: used in the roasting workshop to control the supply of sulfur in the sulfur silo. Material bulk density t/m 3: 1.5. Conveying capacity t/h: 5. Size: DN200. Valve height/mm: H ≈ 420. Valve body (upper and lower shells) material: 304. Impeller: 304. Material temperature: 200~400 ℃, grade: 10kV, 380V/220V, 50Hz.　　Powder rotary valve, 4-inch card interface, DN100 316L material manual material is pharmaceutical powder, high temperature 200 ℃ steam sterilization.　　Material: desulfurization ash powder, high temperature resistance: 400-500 degrees, currently using stainless steel material.

　　【偏置式旋轉閥】適用于≤2kg/cm2系統壓力或壓差。設置排氣口(正壓輸送時選用)將葉輪旋轉帶出的氣體通過排氣口送至排氣裝置，提高填充效率?！　iased rotary valves are suitable for system pressures or pressure differentials of ≤ 2kg/cm 2. Set up an exhaust port (selected for positive pressure conveying) to send the gas carried out by the impeller rotation to the exhaust device through the exhaust port, improving the filling efficiency.　　1. 進料口采用防卡進料口設計，能將物料均勻投入葉輪每個角落。根據不同介質調整間隙設計，采用V形葉片及其他特殊轉子形式，物料運行更流暢?！　?. 進料口設有防切料入口設計，適用于顆粒、塊狀、片狀物料輸送。通過減少葉輪與閥體的接觸面，物料被撥開分離有更多角度落入葉腔，減少阻力，卡滯問題?！　》ㄌm形式：圓形、方形、偏置式　　廣泛適用于石化、化工、鋼廠、電廠、礦山、水泥、環保等行業中氣力輸送、計量等場合，尤其適用顆粒料，也可用于粉末料的輸送。【電話/微信咨詢：陳經理18068546632】　　偏置式旋轉閥產品特點：　　殼體及主要零部件采用精密鑄造，外形美觀;　　高強度的閥體及軸，可承受高壓且運轉平穩;　　特殊防卡料設計，避免運轉中粒子剪斷現象;【電話/微信咨詢：陳經理18068546632】　　先進的軸部密封結構，采用氣體吹掃裝置防止粉塵進入軸承。          《掃二維碼-添加 陳經理 微信-咨詢偏置式旋轉閥》　　1. The feed inlet adopts an anti jamming design, which can evenly feed the material into every corner of the impeller. Adjust the gap design according to different media, adopt V-shaped blades and other special rotor forms, and ensure smoother material operation.　　2. The feed inlet is designed with anti cutting material inlet, suitable for conveying granular, block, and sheet materials. By reducing the contact surface between the impeller and the valve body, the material is separated and more angles fall into the blade cavity, reducing resistance and jamming problems.　　Flange form: circular, square, offset type.　　Widely applicable in industries such as petrochemicals, chemicals, steel mills, power plants, mines, cement, environmental protection, etc. for pneumatic conveying, metering, etc., especially suitable for granular materials, and can also be used for conveying powder materials.

　　內襯聚氨酯卸料閥的工作原理是通過電動機驅動傳遞給減速機，?減速機通過聯軸器或鏈輪使旋轉閥的轉子旋轉。?在旋轉過程中，?材料已經在旋轉葉片的空間里，?葉片旋轉將粉料/顆粒料/粉體/固體物料旋轉到排出口，?材料的自重流入輸送系統或儲藏室?！　?nèi)襯聚氨酯卸料閥主要有以下優點：　　1、防腐性能好：聚氨酯卸料閥常用于輸送腐蝕性介質，內襯可以提高星型卸料閥的耐腐蝕性，從而延長閥門的使用壽命?！　?、耐磨性能好：內襯聚氨酯材料硬度高，可以保護星型卸料閥，減少閥門的磨損?！　?、密封性好：內襯聚氨酯卸料閥可以保證閥門的密封性更好，防止物料泄漏?！倦娫?huà)/微信咨詢：陳經理 18068546632】       　　快開門式星型卸料閥：松開固定螺栓，打開端蓋門，抽出轉子，清洗后轉子推入殼體內，旋緊定位螺栓。      《掃二維碼-添加 陳經理 微信-咨詢內襯聚氨酯卸料閥》　　The working principle of the lined polyurethane discharge valve is transmitted to the reducer through an electric motor drive, and the reducer rotates the rotor of the rotary valve through a coupling or sprocket. During the rotation process, the material is already in the space of the rotating blade. The blade rotation rotates the powder/granular material/powder/solid material to the discharge outlet, and the self weight of the material flows into the conveying system or storage room.　　The lined polyurethane discharge valve has the following advantages:　　1. Good anti-corrosion performance: Polyurethane discharge valves are often used to transport corrosive media, and the lining can improve the corrosion resistance of star shaped discharge valves, thereby extending their service life.　　2. Good wear resistance: The polyurethane lining material has high hardness, which can protect the star shaped discharge valve and reduce valve wear.　　3. Good sealing: The polyurethane lined discharge valve can ensure better sealing of the valve and prevent material leakage.

尼龍旋轉閥由本公司自主研制，適用于不可接觸金屬物料的卸料。箱體、葉輪以及端蓋，都采用整塊尼龍銑削加工，結構牢靠，運行無噪音，相較于陶瓷閥，可以節省成本，是鋰電/化工/制藥行業新寵。尼龍旋轉閥采用加厚葉輪設計，與殼體配合間隙小，結構精密，使用過程中不易漏風不易漏料，防堵耐用。尼龍旋轉閥所采用的尼龍材料具有良好的高溫穩定性，可在高溫條件下安全使用。它是一種用于輸送介質的可靠材料?！倦娫?huà)/微信咨詢：陳經理18068546632】旋轉閥內襯四氟作用：內襯四氟在一定的溫度條件下熱穩定性極高并且耐磨性很好，同時有著優良的耐油性和耐酸堿性能，與金屬材料有良好抗腐蝕性及耐磨性。良好的物理機械性能也很重要：摩擦系數小，耐磨損和耐高溫等性能;可防止金屬腐蝕;能夠加工成各種形狀、不同尺寸和不同形狀、不同顏色的涂層，還具有良好的耐化學腐蝕性及抗氧化性。它的優良特性解決了我國鋰電、化工、石油、制藥等領域的許多問題，同時也被應用為密封材料和填充材料?！倦娫?huà)/微信咨詢：陳經理18068546632】?jī)?nèi)襯四氟旋轉閥放料閥具備卓 越的密封性能，能夠確保旋轉閥嚴密封閉。它能夠有效防止介質泄漏和外部雜質進入，保護工藝過程的安全性和穩定性。         《掃二維碼-添加 陳經理 微信-咨詢產品或定制》The nylon rotary valve is independently developed by our company and is suitable for unloading non-contact metal materials. The casing, impeller, and end cap are all machined with a single piece of nylon, which has a reliable structure and operates without noise. Compared with ceramic valves, it can save costs and is a new favorite in the lithium battery industry.The nylon rotary valve adopts a thickened impeller design, which has a small clearance with the shell and a precise structure. It is not easy to leak air or material during use, and is durable and anti blocking.The nylon material used in the nylon rotary valve has good high-temperature stability and can be safely used under high temperature conditions. It is a reliable material used for conveying media.Internal PTFE lining of rotary valve:The PTFE lining has extremely high thermal stability and good wear resistance under certain temperature conditions, as well as excellent oil and acid alkali resistance. It also has good corrosion resistance and wear resistance compared to metal materials. Good physical and mechanical properties are also important: low friction coefficient, wear resistance, and high temperature resistance; Can prevent metal corrosion; It can be processed into coatings of various shapes, sizes, shapes, and colors, and also has good chemical corrosion resistance and oxidation resistance. Its excellent characteristics have solved many problems in China's lithium battery, chemical, petroleum, pharmaceutical and other fields, and have also been applied as sealing materials and filling materials.The PTFE lined rotary valve discharge valve has excellent sealing performance, ensuring that the rotary valve is tightly sealed. It can effectively prevent medium leakage and external impurities from entering, protecting the safety and stability of the process.

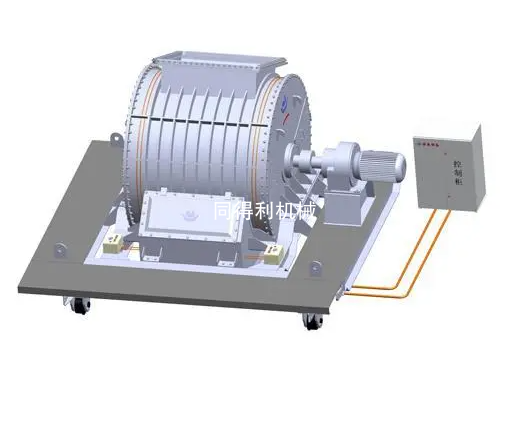

　　干熄焦旋轉密封閥既能連續定量地排料，又具有良好的密封性及耐磨性?？梢杂行У乜刂聘上t內的循環氣體和粉塵的外泄，穩定干熄爐內循環氣體的壓力，是現代先進干熄焦工藝必選的關鍵設備?！　∥夜緦?zhuān) 業生產(B)GFY、YJD系列關風機(關風器)、星型卸料器、DS系列電動鎖氣器、DN型旋轉閥，快開閥、清潔閥、風送式旋轉閥等產品。廣泛應用于糧食、飼料、石油化工、制藥、淀粉、油脂、化工干燥、除塵、冶金、環保、電子、煤炭、建筑、電力機械等行業設備上。用于固體粒料、粉料、超微粉體在氣力輸送及管網正負壓狀態下的卸料?！倦娫?huà)/微信咨詢：陳經理18068546632】　　冷焦排出系統：　　冷卻后的焦炭由電磁振動給料器定量排出，送入旋轉密封閥，通過旋轉密封閥的旋轉在封住干熄爐內循環氣體不向爐外泄漏的情況下，把焦炭連續地排出，連續定量排出的焦炭通過排焦溜槽送到帶式輸送機上輸出?！　「上ń估浣古懦鲈O(shè)備由排焦裝置及運焦皮帶兩部分組成。排焦裝置包括檢修用平板閘門、電磁振動給料器、旋轉密封閥、吹掃風機、自動潤滑裝置、排焦溜槽等設備?！　?、平板閘門：安裝在干熄爐底部出口。正常生產時平板閘門完全打開，在年修或排焦裝置需要檢修時，關閉平板閘門防止干熄爐底部的焦炭落下。　　2、磁振動給料器：是焦炭定量排焦裝置，通過改變勵磁電流大小，來改變電磁振動給料器的振幅，從而改變焦炭的排出量。電磁振動給料器內設有振幅和溫度檢測器?！　?、旋轉密封閥：把振動給料器定量排出的焦炭在密閉狀態下連續地排出。設有正反轉，正常生產時正轉，事故時反轉。　　4、排焦溜槽：排焦溜槽是將旋轉密封閥排出的焦炭送至皮帶機的設備，以保證干熄焦裝置的連續正常運轉。排焦溜槽位于旋轉密封閥下部，旋轉密封閥連續排出的焦炭通過排焦溜槽中擋板的切換，排到指定的皮帶機上?！　?、吹掃風機：吹掃風機向電磁振動給料器、旋轉密封閥不間斷地吹入空氣，以保證設備殼體內部正壓，防止灰塵進入，延長設備使用壽命，同時降低電磁振動給料器線圈的溫度，電磁振動給料器線圈的溫度要求不高于設定值。當吹掃風機出現故障時，通電磁切換閥自動切換到管道壓縮空氣或氮?dú)饨o電磁振動給料器和旋轉密封閥送風。　　6、自動給脂泵：自動潤滑泵定時、定量地向旋轉密封閥的軸承和密封環提供潤滑脂。自動潤滑的時間間隔由人工設定，該裝置設有油位低下檢測及換向檢測等。自動給脂泵設現場單獨操作、中 央控制室單獨操作和中控室PLC連動操作三種操作方式?！　?、運焦皮帶：由干熄爐冷卻段冷卻后的焦炭經平板閘門、電磁振動給料器、旋轉密封閥及排焦溜槽排至運焦皮帶上，由運焦皮帶將冷焦運走。運焦皮帶機上設有電子皮帶秤、高溫輻射計及超溫灑水裝置。電子皮帶秤對焦炭進行連續稱量，稱量值與設定值的偏差值反饋給電磁振動給料器，將排焦量控制在穩定的設定值范圍。當高溫輻射計檢測到排出的焦炭溫度超過設定的排焦溫度上限時，噴水裝置啟動，噴水降溫，以防燒壞皮帶機。皮帶機機頭機尾落料點設灰塵點，為安全正常運行還設有皮帶糾偏裝置及拉繩開關?！倦娫?huà)/微信咨詢：陳經理18068546632】　　常州同得利機械廠擁有多年的研發生產/定制卸料閥旋轉閥的經驗，秉承質量第 一、用戶至 上的原則。我們的旋轉閥能夠處理鋰電池、鋼廠、電廠、水泥、礦山、環保、塑料、化工、食品和醫藥等行業的各種顆粒、片狀、塊狀物料、粉料、超微粉體等。              《掃二維碼-添加 陳經理 微信-咨詢產品》 　　The dry quenching rotary sealing valve can continuously and quantitatively discharge materials, and has good sealing and wear resistance. It can effectively control the leakage of circulating gas and dust inside the dry quenching furnace, stabilize the pressure of circulating gas inside the dry quenching furnace, and is a key equipment that must be selected for modern advanced dry quenching technology.　　Our company specializes in the production of (B) GFY, YJD series shut-off fans (shut-off fans), star shaped unloaders, DS series electric air locks, DN type rotary valves, quick opening valves, cleaning valves, pneumatic rotary valves, and other products. Widely used in industries such as grain, feed, petrochemicals, pharmaceuticals, starch, fats, chemical drying, dust removal, metallurgy, environmental protection, electronics, coal, construction, and power machinery. Used for unloading solid particles, powders, and ultrafine powders under pneumatic conveying and positive and negative pressure in pipeline networks.　　Rotary sealing valve: continuously discharge the coke quantitatively discharged from the vibrating feeder in a closed state. Equipped with forward and reverse rotation, it can rotate forward during normal production and reverse during accidents.

　　雙葉輪旋轉閥，主要用于鋼廠、電廠等行業?！　∵m用于卸料量調節范圍更大的工況?！　∠铝厦娣e大、不堵料不卡料?！　‰p轉子驅動、雙轉子調節?！　〕Ｖ萃美麑?zhuān) 業生產(B)GFY、YJD系列關風機(關風器)、星型卸料器、DS系列電動鎖氣器、DN型旋轉閥，快開閥、清潔閥、風送式旋轉閥等產品。廣泛應用于糧食、飼料、石油化工、制藥、淀粉、油脂、化工干燥、除塵、冶金、環保、電子、煤炭、建筑、電力機械等行業設備上。用于固體粒料、粉料、超微粉體在氣力輸送及管網正負壓狀態下的卸料?！　ouble bladed rotary valve, mainly used in industries such as steel mills and power plants.　　Suitable for working conditions with a wider range of discharge volume adjustment.　　Large cutting area, no blockage or jamming.　　Dual rotor drive, dual rotor adjustment.　　Changzhou Tongdeli specializes in the production of (B) GFY, YJD series shut-off fans (shut-off fans), star shaped unloaders, DS series electric air locks, DN type rotary valves, quick opening valves, cleaning valves, and pneumatic rotary valves. Widely used in industries such as grain, feed, petrochemicals, pharmaceuticals, starch, fats, chemical drying, dust removal, metallurgy, environmental protection, electronics, coal, construction, and power machinery. Used for unloading solid particles, powders, and ultrafine powders under pneumatic conveying and positive and negative pressure in pipeline networks.

　　高壓星型旋轉閥為我公司自主研發，具備在高壓工況下運行能力，耐壓能力達到1MPa。　　主要結構：殼體、葉輪、端蓋、采購機械手噴涂，碳化鎢、納米陶瓷、四氟?！　≈饕糜谳斔碗姵卣龢O材料，磷酸鐵鋰，三元材料等。【電話/微信咨詢：陳經理18068546632】　　特點：杜絕金屬接觸，防腐蝕，增加使用壽命。            《掃二維碼-添加 陳經理 微信-咨詢產品》　　The high-pressure star type rotary valve is independently developed by our company and has the ability to operate under high pressure conditions, with a pressure resistance of up to 1MPa.　　Main structure: shell, impeller, end cover, procurement mechanical arm spraying, tungsten carbide, nano ceramic, PTFE.　　Mainly used for transporting battery cathode materials, lithium iron phosphate, ternary materials, etc.　　Features: Eliminate metal contact, prevent corrosion, and increase service life.

　　卸料閥可分為：普通型，耐壓型，外裝耐溫耐壓型，快速清洗型，定量型。　　尼龍快拆卸料閥由本公司自主研制，適用于不可接觸金屬物料的卸料。箱體、葉輪以及端蓋，都采用整塊尼龍銑削加工，結構牢靠，運行無噪音，相較于陶瓷閥，可以節省成本，是鋰電行業新寵?！倦娫?huà)/微信咨詢：陳經理18068546632】　　鋰電池正負極原料輸送旋轉卸料閥常見分類有：滑桿星型卸料閥，側快拆卸料閥，陶瓷星型卸料閥，尼龍旋轉卸料閥，鈦合金星型卸料閥，四氟星型卸料閥，耐壓星型卸料閥?！　∧猃埧觳鹦读祥y主要結構：殼體、葉輪、端蓋，采用改性尼龍?！　≈饕糜谳斔碗姵卣龢O材料、磷酸鐵鋰、三元材料等?！　√攸c(diǎn)：改性尼龍比普通尼龍更耐磨，耐高溫?！倦娫?huà)/微信咨詢：陳經理18068546632】　　常州同得利技術研發于2016年，批量生產于2018年，2020年更新第4代尼龍星型閥，目前有尼龍星型閥發明專 利。            《掃二維碼-添加 陳經理 微信-咨詢產品或定制》　　The discharge valve can be divided into: ordinary type, pressure resistant type, external temperature and pressure resistant type, quick cleaning type, and quantitative type.　　The nylon quick disassembly material valve is independently developed by our company and is suitable for unloading non-contact metal materials. The casing, impeller, and end cover are all processed using a single piece of nylon milling, with a reliable structure and noiseless operation. Compared to ceramic valves, they can save costs and are a new favorite in the lithium battery industry.　　The common classifications of rotary discharge valves for the transportation of positive and negative raw materials in lithium batteries include: sliding rod star discharge valves, side quick release valves, ceramic star discharge valves, nylon rotary discharge valves, titanium alloy star discharge valves, PTFE star discharge valves, and pressure resistant star discharge valves.　　The main structure of the nylon quick disassembly material valve is a shell, impeller, and end cover, which are made of modified nylon.　　Mainly used for transporting battery cathode materials, lithium iron phosphate, ternary materials, etc.　　Features: Modified nylon is more wear-resistant and heat-resistant than ordinary nylon.　　Changzhou Tongdeli Technology was developed in 2016. mass-produced in 2018. and updated its fourth generation nylon star valve in 2020. Currently, it has a nylon star valve invention patent.

　　尼龍快拆式旋轉閥密封優越，用感無憂：結構穩定，密封性能良好?？捎糜诜哿?、小顆粒物料，在正負極壓差吸送過程中將物料分離排出。采用加厚葉輪設計，與殼體配合間隙小，結構精密，使用過程中不易漏風不易漏料，防堵耐用?！　〈水a(chǎn)品由本公司自主研制，適用于不可接觸金屬物料的卸料。箱體、葉輪以及端蓋，都采用整塊尼龍銑削加工，結構牢靠，運行無噪音，相較于陶瓷閥，可以節省成本，是鋰電行業新寵。【電話/微信咨詢：陳經理18068546632】　　快速清洗型：快速清洗旋轉閥制作精致、成功使用德、日技術制造之精華。產品拆裝靈活、易于清洗。主要用于化工、制藥、食品等行業高衛生標準的物料卸料及經常更換物料的場所工作?！　】刹鹦度~輪：便于快速拆卸清洗旋轉閥的物料接觸面?！　◎?qū)動方式：鏈驅動/馬達直連驅動?！　?dòng)力配置：擺線針輪減速機，Y系列電機(可按客戶指定動力配置)。　　材質：尼龍系列。　　滑桿式：清洗前的拆卸。松開螺栓手柄，沿導柱將端蓋輕輕拉至極限，抽出葉輪，雙手握住葉輪兩端抽頸取出。清洗后，裝入葉輪(轉動葉輪使花鍵齒合)，推入端蓋(轉動活動軸柄使花鍵齒合)，擰緊螺栓手柄?！倦娫?huà)/微信咨詢：陳經理18068546632】　　快開門式：操作方法基本如上所述。            《掃二維碼-添加 陳經理 微信-咨詢產品或定制》　　Nylon quick release rotary valve has superior sealing and worry free use: stable structure and good sealing performance. Can be used for powder and small particle materials, to separate and discharge materials during the positive and negative pressure difference suction process. Adopting a thickened impeller design, the clearance between the impeller and the shell is small, the structure is precise, and it is not easy to leak air or materials during use, and it is durable and anti clogging.　　This product is independently developed by our company and is suitable for unloading non-contact metal materials. The casing, impeller, and end cover are all processed using a single piece of nylon milling, with a reliable structure and noiseless operation. Compared to ceramic valves, they can save costs and are a new favorite in the lithium battery industry.　　Rapid cleaning type: the rapid cleaning rotary valve is exquisitely made, and successfully uses the essence of German and Japanese technology. The product is flexible in disassembly and easy to clean. Mainly used for unloading materials with high hygiene standards in industries such as chemical, pharmaceutical, and food, as well as working in places where materials are frequently replaced.　　Detachable impeller: facilitates quick disassembly and cleaning of the material contact surface of the rotary valve.　　Drive mode: chain drive/motor direct connection drive.　　Power configuration: cycloidal pinwheel reducer, Y-series motor (can be configured according to customer specifications).　　Material: Nylon series.　　Sliding rod type: disassembly before cleaning. Release the bolt handle, gently pull the end cover along the guide pillar to the limit, extract the impeller, and hold both ends of the impeller with both hands to extract the necks. After cleaning, install the impeller (rotate the impeller to fit the spline teeth), push in the end cover (rotate the movable shaft handle to fit the spline teeth), and tighten the bolt handle.　　Quick opening type: The operation method is basically as described above.

　　尼龍旋轉卸料器主要結構：殼體、葉輪、端蓋，采用改性尼龍?！　≈饕糜谳斔碗姵卣龢O材料、磷酸鐵鋰、三元材料等。　　特點：改性尼龍比普通尼龍更耐磨，耐高溫?！　〕Ｖ萃美夹g(shù)研發于2016年，批量生產于2018年，2020年更新第4代尼龍星型閥，目前有尼龍星型閥發明專 利?！倦娫?huà)/微信咨詢：陳經理18068546632】　　我公司專 業生產(B)GFY、YJD系列關風機(關風器)、星型卸料器、DS系列電動鎖氣器、DN型旋轉閥，快開閥、清潔閥、風送式旋轉閥等產品。廣泛應用于糧食、飼料、石油化工、制藥、淀粉、油脂、化工干燥、除塵、冶金、環保、電子、煤炭、建筑、電力機械等行業設備上。用于固體粒料、粉料、超微粉體在氣力輸送及管網正負壓狀態下的卸料。           《掃二維碼-添加 陳經理 微信-咨詢產品或定制》　　The main structure of the nylon rotary unloader is a shell, impeller, and end cover, made of modified nylon.　　Mainly used for transporting battery cathode materials, lithium iron phosphate, ternary materials, etc.　　Features: Modified nylon is more wear-resistant and heat-resistant than ordinary nylon.　　Changzhou Tongdeli Technology was developed in 2016. mass-produced in 2018. and updated its fourth generation nylon star valve in 2020. Currently, it has a nylon star valve invention patent.　　Our company specializes in the production of (B) GFY, YJD series shut-off fans (shut-off fans), star shaped unloaders, DS series electric air locks, DN type rotary valves, quick opening valves, cleaning valves, pneumatic rotary valves, and other products. Widely used in industries such as grain, feed, petrochemicals, pharmaceuticals, starch, fats, chemical drying, dust removal, metallurgy, environmental protection, electronics, coal, construction, and power machinery. Used for unloading solid particles, powders, and ultrafine powders under pneumatic conveying and positive and negative pressure in pipeline networks.
