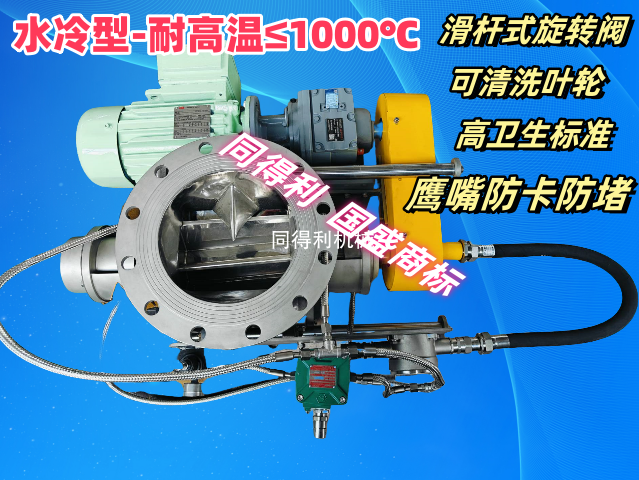

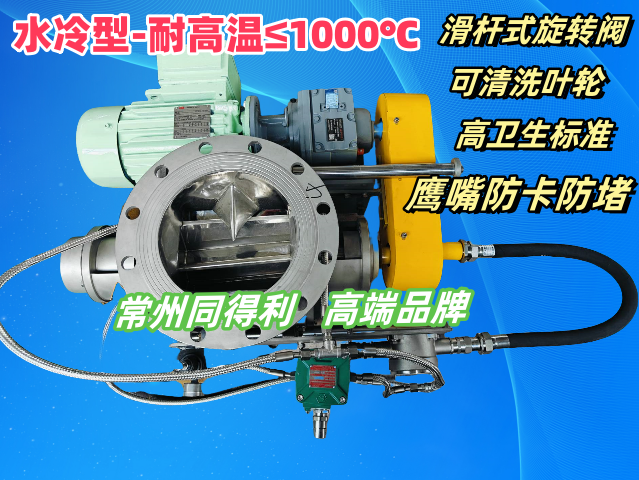

【清洗型】水冷耐高溫滑桿式旋轉閥，此產品由本公司自主研發生產，其特點集聚一身：水冷式耐高溫＜1000℃，鷹嘴防卡防堵，滑桿式可清洗葉輪，高衛生標準。

　　快速清洗旋轉閥制作精致、成功使用德、日技術制造之精華。產品拆裝靈活、易于清洗。主要用于化工、制藥、食品等行業高衛生標準的物料卸料及經常更換物料的場所工作。

　　滑桿式旋轉閥可拆卸葉輪：便于快速拆卸清洗旋轉閥的物料接觸面。

　　驅動方式：鏈驅動/馬達直連驅動。

　　動力配置：擺線針輪減速機，Y系列電機(可按客戶指定動力配置)

　　滑桿式旋轉閥/星型卸料閥：清洗前的拆卸。松開螺栓手柄，沿導柱將端蓋輕輕拉至極限，抽出葉輪，雙手握住葉輪兩端抽頸取出。清洗后，裝入葉輪(轉動葉輪使花鍵齒合)，推入端蓋(轉動活動軸柄使花鍵齒合)，擰緊螺栓手柄。【電話/微信咨詢：陳經理18068546632】

　　水冷耐高溫旋轉閥：適用于溫度過高的物料，很好的降溫。

　　閥體：采用整體澆鑄于不銹鋼全 面通水降溫。

　　端蓋采用全 面通水降溫，避免軸承傳遞高溫。

　　葉輪主軸采用全 面通水降溫，避免高溫形變，影響同心度。

　　我公司專 業生產(B)GFY、YJD系列關風機(關風器)、星型卸料器、DS系列電動鎖氣器、DN型旋轉閥，快開閥、清潔閥、風送式旋轉閥等產品。廣泛應用于鋰電池、糧食、飼料、石油化工、制藥、淀粉、油脂、化工干燥、塑料、除塵、冶金、環保、電子、煤炭、建筑、電力機械等行業設備上。用于固體粒料、粉料、超微粉體在氣力輸送及管網正負壓狀態下的卸料。【電話/微信咨詢：陳經理18068546632】

     《掃二維碼-添加 陳經理 微信-咨詢水冷耐高溫滑桿式旋轉閥》

　　Sliding rod rotary valve/star discharge valve: disassembly before cleaning. Release the bolt handle, gently pull the end cover along the guide column to the limit, extract the impeller, and hold both ends of the impeller with both hands to remove the neck. After cleaning, install the impeller (rotate the impeller to engage the spline teeth), push in the end cover (rotate the movable shaft handle to engage the spline teeth), and tighten the bolt handle.

　　Water cooled high-temperature resistant rotary valve: suitable for materials with excessively high temperatures, providing excellent cooling.

　　Valve body: It is cast as a whole in stainless steel and fully cooled by water flow.

　　The end cover adopts comprehensive water cooling to avoid bearing transmission of high temperature.

　　The impeller spindle adopts comprehensive water cooling to avoid high-temperature deformation and affect concentricity.

　　Our company specializes in the production of (B) GFY, YJD series air shut-off fans (air shut-off devices), star shaped unloaders, DS series electric air locks, DN type rotary valves, quick opening valves, cleaning valves, pneumatic rotary valves and other products. Widely used in equipment for industries such as lithium batteries, grain, feed, petrochemicals, pharmaceuticals, starch, oils and fats, chemical drying, plastics, dust removal, metallurgy, environmental protection, electronics, coal, construction, and power machinery. Used for unloading solid granules, powders, and ultrafine powders under pneumatic conveying and positive and negative pressure in pipeline networks.
