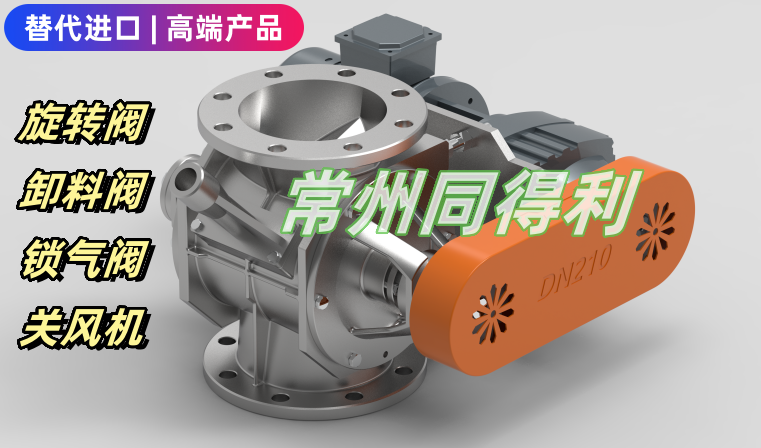

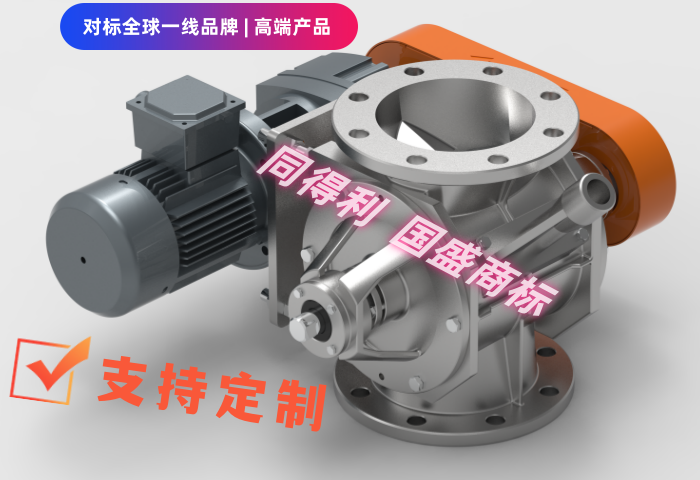

防卡旋轉閥-對標全球一線品牌：

　　進口品牌價格貴，交期長怎么辦？找國產替代，選大品牌-國盛商標常州同得利，專 利技術，匠心質造。【電話/微信咨詢：陳經理18068546632】

　　防卡型旋轉閥主要用于顆粒料和重力下料和氣力輸送卸料，配備特殊防卡結構的導流槽.一般采用V型進料口，葉片頂端倒角;一體式閥體排氣口。

　　1.適用于≤4kg/cm2系統壓力或壓差。

　　2.設置排氣口(正壓輸送時選用)將葉輪旋轉帶出的高壓氣體通過排氣口送至排氣裝置，提高填充效率。

　　3.防切料入口設計，即便上游充滿物料也可安全啟動。

　　4.軸承外置式安裝、經久耐用、性能優異。

　　5.提供鏈驅動、直聯驅動多種安裝方式。

　　6.根據需求配置減速機電機。

       7.輸送物料：顆粒料，片狀料，塊狀料，實現不卡料，不堵料。

　　8.材質主要有:不銹鋼304-310系列、鋁合金、鈦合金、陶瓷系列等。【電話/微信咨詢：陳經理18068546632】

　　防卡旋轉閥配備氣密封裝置：

　　氣密封旋轉卸料閥的用途廣泛，?特別適用于需要連續、?定量卸料的場合。?它能夠在負壓或壓力輸出系統中均勻且連續地將物料供給到輸送管中，?穩定氣體固體混合物的輸送，?并起到遮斷排出閥上下部氣壓的鎖定功能。?通過自重使上料盒的材料落下，?填充葉片間的間隙，?并隨著葉片的旋轉排出到下部，?從而實現定量且連續的物料排出。?【電話/微信咨詢：陳經理18068546632】

　　常州同得利機械廠擁有多年的研發生產/定制卸料閥旋轉閥的經驗，秉承質量第 一、用戶至 上的原則。我們的旋轉閥能夠處理鋰電池、鋼廠、電廠、水泥、礦山、環保、塑料、化工、食品和醫藥等行業的各種顆粒、片狀、塊狀物料、粘料、粉料、超微粉體等。

          《掃二維碼-添加 陳經理 微信-咨詢防卡旋轉閥》

　　Anti jamming rotary valve - benchmarking against top global brands.

　　What should we do if imported brands are expensive and have long delivery times? Find domestic alternatives, choose the big brand - Guosheng trademark Changzhou Tongdeli, patented technology, and craftsmanship.

　　Anti jamming rotary valves are mainly used for granular materials, gravity feeding, and pneumatic conveying unloading, equipped with special anti jamming structure guide grooves. Generally, V-shaped feeding ports are used, and the blade tips are chamfered; Integrated valve body exhaust port.

　　1. Suitable for system pressures or pressure differentials of ≤ 4kg/cm2.

　　2. Set up an exhaust port (selected for positive pressure conveying) to send the high-pressure gas carried out by the impeller rotation to the exhaust device through the exhaust port, improving the filling efficiency.

　　3. Anti cutting material inlet design, even if the upstream is filled with materials, it can be safely started.

　　4. The bearing is externally installed, durable, and has excellent performance.

　　5. Provide multiple installation methods for chain drive and direct drive.

　　6. Configure the gearbox motor according to the requirements.

　　7. The main materials include stainless steel 304-310 series, aluminum alloy, titanium alloy, ceramic series, etc.
