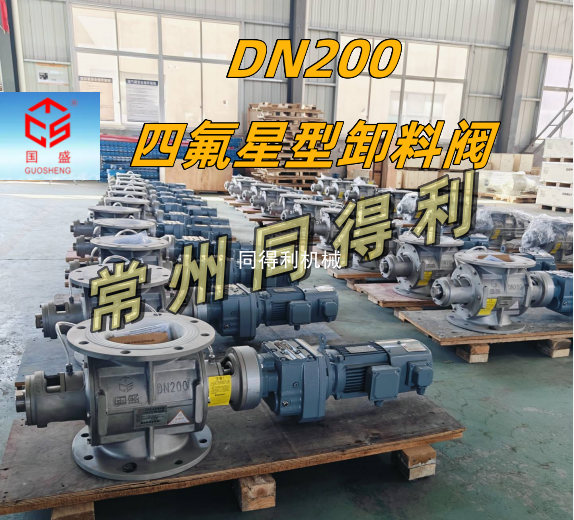

DN200鎖氣閥 / 卸料閥
DN200鎖氣閥 / 卸料閥
產品中心
Product Center Product聯系我們
contact us contact聯系人:18305138376 徐經理
聯系人: 黃經理
固話:18068546632
郵箱:1337695911@qq.com
地址:江蘇省常州市天寧區常州檢驗檢測產業園6號樓601室
參數名稱 | 參數值 |
---|---|
品名 | 電動鎖氣器,旋轉閥,鎖氣閥,卸料閥,星型卸料器,星型鎖氣器,卸料閥鎖氣器 |
輸送物料 | 粉末,粉塵,超微粉體,小顆粒物料 |
應用行業 | 化工,食品,藥材,鋰電,火力發電廠,水泥廠,糧食加工廠 |
常規型號 | DN50,DN100,DN150,DN200,DN250,DN300,DN350,DN400,DN450,DN500,DS-E-1.8L-100*100~DS-E-160L-700*700 |
轉速 | 24/33/42轉/分 |
工作溫度 | 常溫≤80℃,耐溫≤300℃ |
電機功率 | 0.75KW~7.5KW |
特點 | 正壓輸送,密封鎖氣,防腐蝕,防粘附,耐高溫 |
品牌 | 常州同得利,國盛商標,江蘇同得利 |
聯系電話(陳經理) | 18068546632 |
電動鎖氣器/鎖氣閥/星型卸料閥用于旋轉卸料和均勻落料,主要用于粉料和小顆粒物料的氣力送料,是由電動裝置和氣密殼體組成,即可起到均勻落料,也可起到氣料分離的作用。
料倉內物料依靠自重或氣力送料落入電動鎖氣器旋轉的葉輪撥片中,隨著葉輪不斷旋轉物料均勻落下方設備中,由于葉輪和殼體間隙,葉輪低速運行,防止氣力順流或逆向運動,氣壓穩定同時,在氣力送料過程中即可起到供料作用,也可起到密封作用。【電話/微信咨詢:陳經理18068546632】
電動鎖氣器兩側端蓋設有平衡壓力的聯通管道,可進行壓縮空氣、氮氣、氧氣、氫氣的注入,注入氣體后,兩側氣囊膨起,無論是氣體、還是物料,均可實現零泄漏。【電話/微信咨詢:陳經理18068546632】
《掃二維碼-添加 陳經理 微信-咨詢鎖氣閥/卸料閥》
Electric air lock/air lock valve/star shaped discharge valve is used for rotating discharge and uniform material dropping, mainly for pneumatic feeding of powder and small particle materials. It is composed of an electric device and an airtight shell, which can achieve uniform material dropping or gas separation.
The materials in the silo are fed by their own weight or pneumatic force and fall into the rotating impeller blades of the electric air lock. As the impeller continues to rotate, the materials evenly fall into the equipment below. Due to the gap between the impeller and the housing, the impeller runs at low speed to prevent the pneumatic force from flowing in the same or opposite direction. At the same time, the air pressure is stable, and it can play a role in feeding and sealing during the pneumatic feeding process.
The two end caps of the electric air lock are equipped with connecting pipes for balanced pressure, which can inject compressed air, nitrogen, oxygen, and hydrogen. After injecting gas, the airbags on both sides will inflate, achieving zero leakage for both gas and material.
Construction case
