旋轉閥(俗稱旋轉給料器或星型卸料器、星型卸料閥、卸灰閥、星型卸灰閥、鎖氣閥、關風機、關風機卸料器、關風器、電動鎖氣器)是應用于粉體(粉沫、顆粒物料、粉?；旌衔?輸送系統中用來卸料、計量、除塵、定量輸送、混合、包裝的專用設備。旋轉閥廣泛用于鋰電,化工,環保,石油,冶金,礦山,耐火材料,電力,鋼廠,水泥,塑料,糧食醫藥等行業。

Rotary valve (commonly known as rotary feeder or star unloader, star discharge valve, ash discharge valve, star discharge valve, air lock valve, air shut-off fan, air shut-off fan unloader, air shut-off device, electric air lock device) is a specialized equipment used in powder (foam, granular material, powder particle mixture) conveying systems for unloading, metering, dust removal, quantitative conveying, mixing, and packaging. Rotary valves are widely used in industries such as lithium batteries, chemicals, environmental protection, petroleum, metallurgy, mining, refractory materials, electricity, steel mills, cement, plastics, grain and medicine.【電話/微信咨詢：陳經理18068546632】

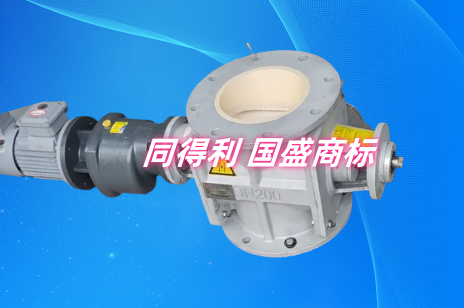

                     DN200陶瓷旋轉閥

卸料旋轉閥工作原理：

卸料旋轉閥的工作原理主要涉及電動機驅動減速機，通過聯軸器或鏈輪使旋轉閥的轉子旋轉。在旋轉過程中，材料位于旋轉葉片的空間內，葉片的旋轉將材料帶到排出口，材料的自重使其流入輸送系統或儲藏室。這種工作方式使得卸料閥能夠均勻、連續地向輸料管供料，保證氣力輸出管內的氣體和固體物質保持穩定，從而確保氣力輸送系統的正常工作。同時，卸料閥還具有鎖氣作用，能夠隔斷卸料閥上下部的氣壓。?

Working principle of unloading rotary valve:

The working principle of the unloading rotary valve mainly involves the motor driving the reducer, which rotates the rotor of the rotary valve through a coupling or sprocket. During the rotation process, the material is located in the space of the rotating blades, and the rotation of the blades brings the material to the discharge outlet. The self weight of the material causes it to flow into the conveying system or storage room. This working method enables the discharge valve to uniformly and continuously feed the conveying pipe, ensuring that the gas and solid substances in the pneumatic output pipe remain stable, thereby ensuring the normal operation of the pneumatic conveying system. At the same time, the discharge valve also has a locking effect, which can block the air pressure at the upper and lower parts of the discharge valve. ?

同得利陶瓷旋轉閥系列：

適用于是0.8-3kg/cm2系統壓力或壓差。

設置排氣口(正壓輸送時選用)將葉輪旋轉帶出的氣體通過排氣口送至排期裝置，提高填充效率。

極小的間隙和特殊的密封裝置保持設備的可靠運行。

軸承外置式安裝、經久耐用、性能優異。

提供鏈驅動、直聯驅動多種安裝方式。【電話/微信咨詢：陳經理18068546632】

陶瓷旋轉閥類型：滑桿式/側快拆/耐高壓/耐高溫/鎖風式/風送滑桿式/防卡型旋轉閥，這些類型的旋轉閥均可定制內襯陶瓷材質。(總有一款適合您的需求)【電話/微信咨詢：陳經理18068546632】

內襯陶瓷旋轉閥作用：

耐高溫：適應鋰電生產過程中的高溫環境，不易變形或損壞。

耐腐蝕：能夠抵御鋰電材料中的腐蝕性介質。

耐磨：硬度較高，能夠承受物料的磨損。

精準控制：能夠?qū)崿F(xiàn)對卸料量的精準控制，滿足生產工藝要求。

密封性好：確保物料在輸送過程中不會泄露，保證生產環境的清潔和安全。

易于清潔：陶瓷表面光滑，不易粘附物料，方便清洗和維護。【電話/微信咨詢：陳經理18068546632】

       常州同得利機械廠擁有多年的研發生產/定制卸料閥旋轉閥的經驗，秉承質量第 一、用戶至 上的原則。我們的旋轉閥能夠處理鋰電池、鋼廠、電廠、水泥、礦山、環保、塑料、化工、食品和醫藥等行業的各種顆粒、片狀、塊狀物料、粉料、超微粉體等。

在您需要購買時：

用途：請說明是定量排出、全量排出還是氣鎖。

使用場所：室內還是室外、高原還是沿海。

流量：每小時供料量。

輸送物料的性能(介質)：名稱、粒度、堆積密度、溫度、安息角、含水率。

輸送場合：正壓、負壓、常壓。

減速機、電機：請指定防護等級、防爆等級。

材質：碳鋼、鑄鐵、不銹鋼、鋁合金、鈦合金、PPC、陶瓷、尼龍、四氟、特氟龍等。

涂裝色：有無指定顏色(無指定是為企業產品標準色)。

          《掃二維碼-添加 陳經理 微信-咨詢陶瓷星型閥》

Tongdeli Ceramic Rotary Valve Series:

Suitable for system pressures or pressure differentials ranging from 0.8-3kg/cm 2.

Set up an exhaust port (selected for positive pressure conveying) to send the gas carried out by the impeller rotation to the scheduling device through the exhaust port, improving the filling efficiency.

The extremely small gap and special sealing device ensure the reliable operation of the equipment.

External installation of bearings, durable and excellent performance.

Provide multiple installation methods for chain drive and direct drive.

Ceramic rotary valve types: sliding rod type/side quick release/high pressure resistance/high temperature resistance/air lock type/air supply sliding rod type/anti jam type rotary valve. These types of rotary valves can be customized with ceramic lining material. (There is always one that suits your needs)

Function of lined ceramic rotary valve:

High temperature resistance: adapted to the high temperature environment during lithium battery production, not easily deformed or damaged.

Corrosion resistance: able to resist corrosive media in lithium battery materials.

Wear resistance: With high hardness, it can withstand the wear of materials.

Precise control: capable of achieving precise control over the discharge volume to meet production process requirements.

Good sealing: Ensure that materials will not leak during transportation, ensuring a clean and safe production environment.

Easy to clean: The ceramic surface is smooth and not easily adhered to materials, making it easy to clean and maintain.

Changzhou Tongdeli Machinery Factory has many years of experience in research and development, production/customization of discharge valve rotary valves, adhering to the principle of quality first and customer first. Our rotary valves are capable of handling various types of particles, flakes, blocks, powders, ultrafine powders, etc. in industries such as lithium batteries, steel mills, power plants, cement, mining, environmental protection, plastics, chemical, food, and pharmaceuticals.
