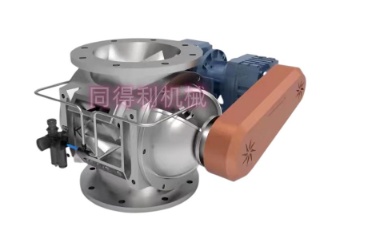

正壓稀相輸送：它是利用低于3kg/cm2 的氣體壓力，采用正壓(吹送式)，以較高的速度來推動或拉動物料使其通過整條輸送線，因此該輸送方式被稱之為低壓高速系統，它具有較高的氣體-物料比。正壓稀相輸送的介質一般采用空氣或氮?dú)?，動力提供一般由羅茨鼓風機提供，氮?dú)廨斔蜁r則有制氮機進行提供。羅茨鼓風機的稀相輸送時，物料在管道中呈懸浮狀態，輸送距離可以達百米，在該系統的開始端約有600m/min 的加速度，在末端可達2000m/min 的高速，因此氣流速度較高。輸送管線初端壓力一般低于0.05Mpa，而末端則與大氣壓基本接近。正壓稀相輸送系統：適用于單點對單點，單點對多點的輸送。正壓稀相輸送系統特點：由于系統處于正壓，所以密封性要求很高，若有一絲泄漏就會造成供料端或者整個系統的粉塵外溢;系統物料采用吹送式，所以末端物料容易從卸料口排出，因此末端構造較簡單;但系統的輸送溫度較高，對于一些特殊易熱敏物料必須做降溫處理;羅茨風機作為動力源，壓力不能達到很高，故輸送距離和產量不能同時取zui大值。負壓稀相輸送系統采用負壓羅茨泵動力源，管道輸送壓力呈低真空狀態，管道風速約10—35m/秒，物料在管道里呈霧狀。負壓輸送起點壓力等于或接近大氣壓，終點壓力在-10至~50Kpa之間，管道真空度沿輸送管道逐漸增高。負壓稀相輸送系統也稱為真空稀相輸送系統。星型卸料器特點：星型卸料器是氣力輸送系統中的關鍵設備。也是除塵和加料系統的常用設備。根據特性、用途和使用條件的不同，星型卸料器有多種結構型式，星型卸料器的選型要根據被輸送物料的特性如堆積密度、物料溫度、吸潮性、含水量、粒徑、流動性、硬度、腐蝕性等來決定的。【電話/微信咨詢：陳經理18068546632】常州同得利機械廠主要制造適用于粉體、顆粒、粘性的，含堅硬雜質的以及高溫高壓或高真空情況下使用的特殊結構的星型卸料器。以及超小尺寸的卸料器，都是非常規結構特殊非標定制。我公司專 業生產(B)GFY、YJD系列關風機(關風器)、星型卸料器、DS系列電動鎖氣器、DN型旋轉閥，快開閥、清潔閥、風送式旋轉閥等產品。廣泛應用于鋰電池、糧食、飼料、石油化工、制藥、淀粉、油脂、化工干燥、塑料、除塵、冶金、環保、電子、煤炭、建筑、電力機械等行業設備上。用于固體粒料、粉料、超微粉體在氣力輸送及管網正負壓狀態下的卸料?！倦娫?微信咨詢：陳經理18068546632】     《掃二維碼-添加 陳經理 微信-咨詢正負壓輸送卸料閥》Positive pressure dilute phase conveying: It uses gas pressure below 3kg/cm2 and adopts positive pressure (blowing type) to push or pull materials through the entire conveying line at a high speed. Therefore, this conveying method is called low-pressure high-speed system, which has a high gas material ratio.The medium for positive pressure dilute phase transportation is generally air or nitrogen, and the power supply is usually provided by a Roots blower. When transporting nitrogen, a nitrogen generator is used. When the Roots blower is used for dilute phase conveying, the material is suspended in the pipeline, and the conveying distance can reach up to 100 meters. At the beginning of the system, there is an acceleration of about 600m/min, and at the end, it can reach a high speed of 2000m/min. Therefore, the airflow velocity is relatively high. The initial pressure of the conveying pipeline is generally lower than 0.05Mpa, while the end pressure is basically close to atmospheric pressure.Positive pressure dilute phase conveying system: suitable for single point to single point and single point to multi-point conveying.Characteristics of positive pressure dilute phase conveying system:Due to the positive pressure of the system, high sealing requirements are required. Any slight leakage can cause dust to overflow from the feeding end or the entire system; The system material adopts a blowing type, so the end material is easily discharged from the discharge port, so the end structure is relatively simple; But the conveying temperature of the system is relatively high, and cooling treatment must be carried out for some special heat sensitive materials; As a power source, the Roots blower cannot achieve very high pressure, so the conveying distance and output cannot be maximized simultaneously.The negative pressure dilute phase conveying system adopts a negative pressure Roots pump power source, and the pipeline conveying pressure is in a low vacuum state. The pipeline wind speed is about 10-35m/s, and the material is in a mist state in the pipeline. The starting pressure of negative pressure conveying is equal to or close to atmospheric pressure, and the ending pressure is between -10 and~50Kpa. The vacuum degree of the pipeline gradually increases along the conveying pipeline. The negative pressure dilute phase conveying system is also known as the vacuum dilute phase conveying system.
